VRH Lightning Protection offers a comprehensive range of advanced earthing solutions designed to provide optimal protection against lightning strikes and electrical faults. Our products are engineered to ensure reliable electrical conductivity, enhance safety, and comply with international standards.

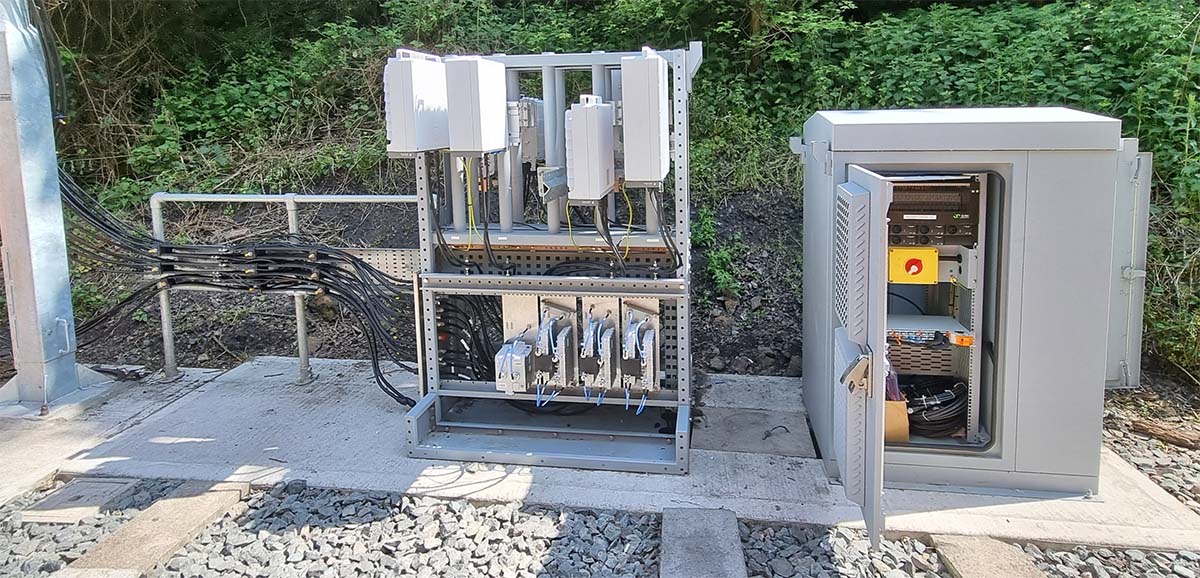

Compact and efficient power supply.
The Small Cell SMPS (Switched-Mode Power Supply) is a compact, energy-efficient power solution designed specifically for telecom small cell applications. It delivers stable and reliable DC power output for uninterrupted operation of critical network devices in both indoor and outdoor environments.
Built for performance, this SMPS unit features high conversion efficiency, rugged construction, and integrated protection mechanisms to ensure safety and longevity. With a wide input voltage range and consistent output regulation, it is ideal for powering equipment in remote, high-density, or challenging conditions, where reliability and space efficiency are crucial.
| Product Name | Small Cell SMPS |
|---|---|
| Input Voltage Range | 90 – 300 VAC |
| Output Voltage | 48V DC ±5% |
| Output Current | 2A / 3A / 5A (as per model) |
| Efficiency | > 90% |
| Mounting Type | Wall / Pole Mountable |
| Enclosure Type | IP65-rated weatherproof casing |
| Protections | Over-voltage, Over-current, Short-circuit, Surge |
| Operating Temperature | -20°C to +60°C |
| Applications | Small cell telecom sites, IoT gateways, outdoor power cabinets |

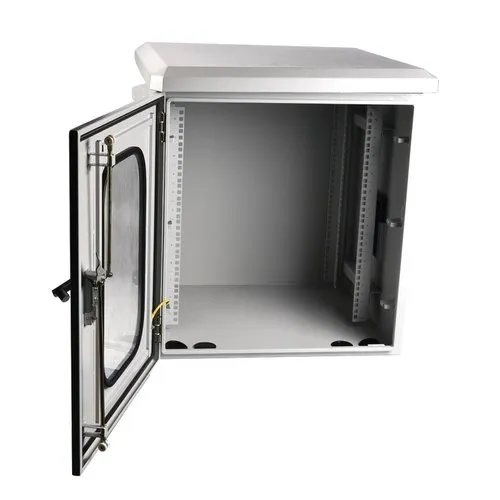

Rugged outdoor power solution
The Pole Mount SMPS (Switched-Mode Power Supply) is a compact, weatherproof power unit engineered to deliver reliable DC output in challenging outdoor conditions. Specially designed for telecom sites, surveillance systems, and smart infrastructure, it can be directly mounted on poles to minimize space usage and installation effort.
This high-performance SMPS features advanced circuitry for efficient power conversion and includes built-in protection against electrical faults. Its rugged enclosure ensures long service life in environments exposed to dust, moisture, and temperature fluctuations. Ideal for powering remote communication nodes, CCTV cameras, and IoT devices.
| Product Name | Pole Mount SMPS |
|---|---|
| Input Voltage Range | 90 – 300 VAC |
| Output Voltage | 48V DC ±5% |
| Output Current | 2A / 5A / 10A (model-specific) |
| Efficiency | > 90% |
| Mounting Type | Direct pole mount (vertical or horizontal orientation) |
| Enclosure Type | IP65-rated, corrosion-resistant metal casing |
| Protections | Over-voltage, Over-current, Short-circuit, Surge |
| Operating Temperature | -20°C to +60°C |
| Applications | Telecom poles, smart city equipment, CCTV poles, IoT infrastructure |
High surface area for efficient current dissipation
VRH Copper Bonded Earth Plates provide excellent grounding solutions with their large surface area design. Each plate is manufactured from high-grade steel with a molecularly bonded copper coating that ensures superior conductivity and exceptional corrosion resistance in various soil conditions.
These plates are particularly effective in applications where vertical rod installation is challenging or where horizontal grounding systems are preferred. The multiple mounting holes allow for easy connection to ground conductors, and the plates can be installed individually or as part of a grid system for enhanced performance.
| Base Material | Low carbon steel |
|---|---|
| Copper Coating | 99.9% pure copper, min. 250 micron thickness |
| Plate Dimensions | 600mm x 600mm x 3mm standard (custom sizes available) |
| Mounting Holes | 4 x 14mm diameter (standard configuration) |
| Current Capacity | Up to 30 kA for 1 second |
| Surface Treatment | Electrolytic copper bonding |
| Compliance | IEEE 80-2000, IS 3043-1987, BS 7430 |
Our technical team can design tailor-made earthing systems for any application or environment.
