Comprehensive Power Distribution

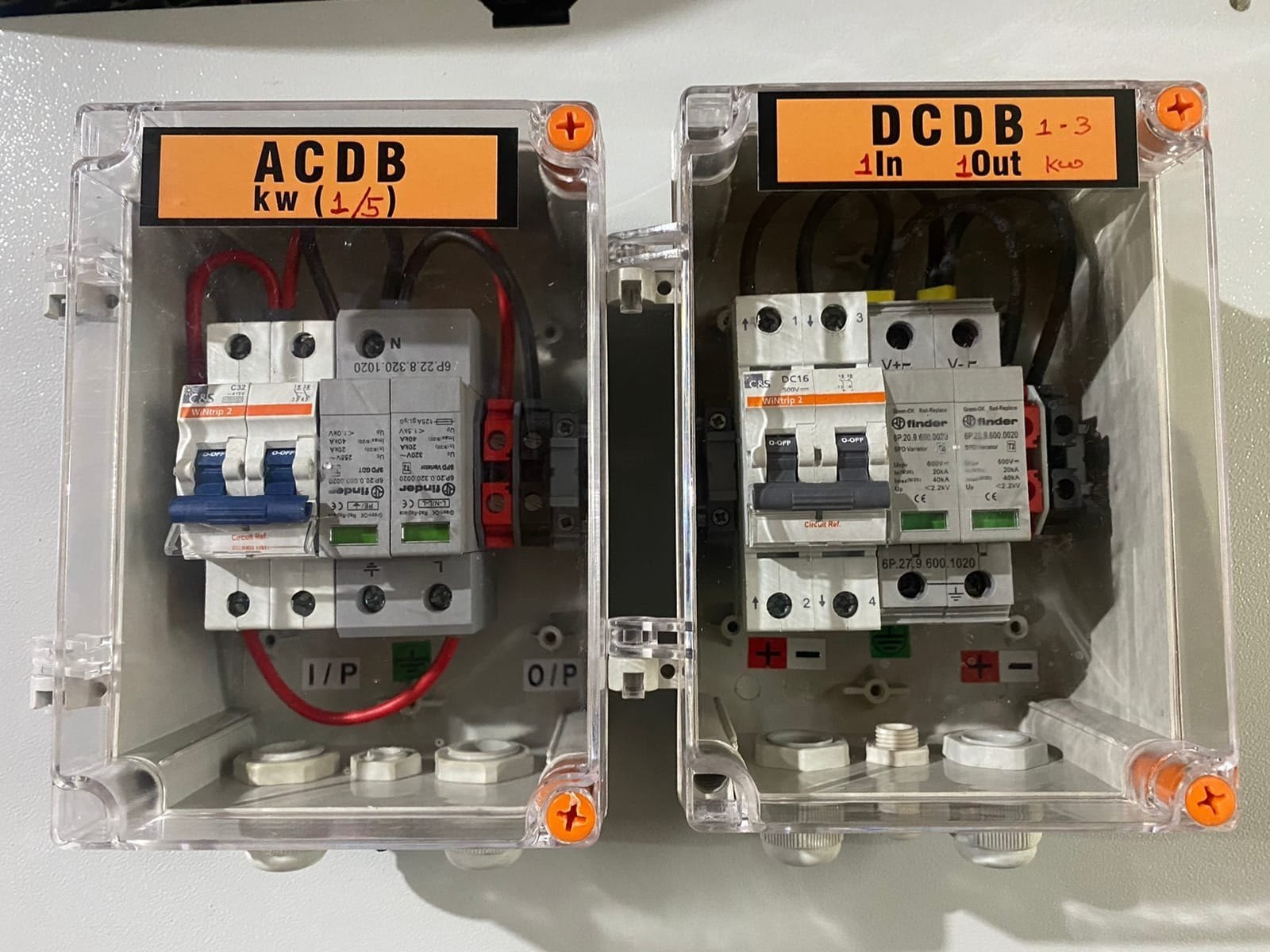

ACDB (AC Distribution Box) and DCDB (DC Distribution Box) are essential components in solar power systems, designed to manage, protect, and isolate electrical circuits on the AC and DC sides of the system. They play a critical role in ensuring safe distribution of power from solar panels to inverters (DCDB) and from inverters to the load or grid (ACDB).
Both units are equipped with protective devices such as MCBs, MCCBs, surge protection devices (SPDs), isolators, and fuses, offering full-scale safety and system control. Housed in robust, weatherproof enclosures, they are ideal for rooftop, ground-mounted, and utility-scale solar installations. The design is modular and customizable as per system capacity and voltage requirements.
| System Compatibility | On-grid, Off-grid, Hybrid Solar Systems |
|---|---|
| DCDB Voltage Rating | Up to 1500V DC |
| ACDB Voltage Rating | Up to 440V AC (1-phase or 3-phase) |
| DCDB Components | MCB/MCCB, DC fuse holders, SPDs, isolators, busbars |
| ACDB Components | MCB/MCCB, SPD (AC Type), contactors, energy meter (optional) |
| Enclosure Material | Polycarbonate / CRCA Steel / SS 304 / FRP |
| Ingress Protection | IP65 / IP66 for outdoor use |
| Cable Entry | Top/Bottom entry with cable glands or MC4 connectors |
| Mounting Type | Wall-mounted / Structure-mounted |
| Standards Compliance | IEC 61439-1/2, IEC 60364, IEC 61643, IS 8623 |
Our technical team can design tailor-made earthing systems for any application or environment.
Contact Our Experts
